Portable Beverage System
A compact, affordable system for viewing and measuring critical internal beverage can double seam dimensions.
An ideal solution for beverage canners that want to visually inspect double seams but aren’t quite ready for an advanced measurement system. The portable system can also be used for quick visual seam checks at the line.

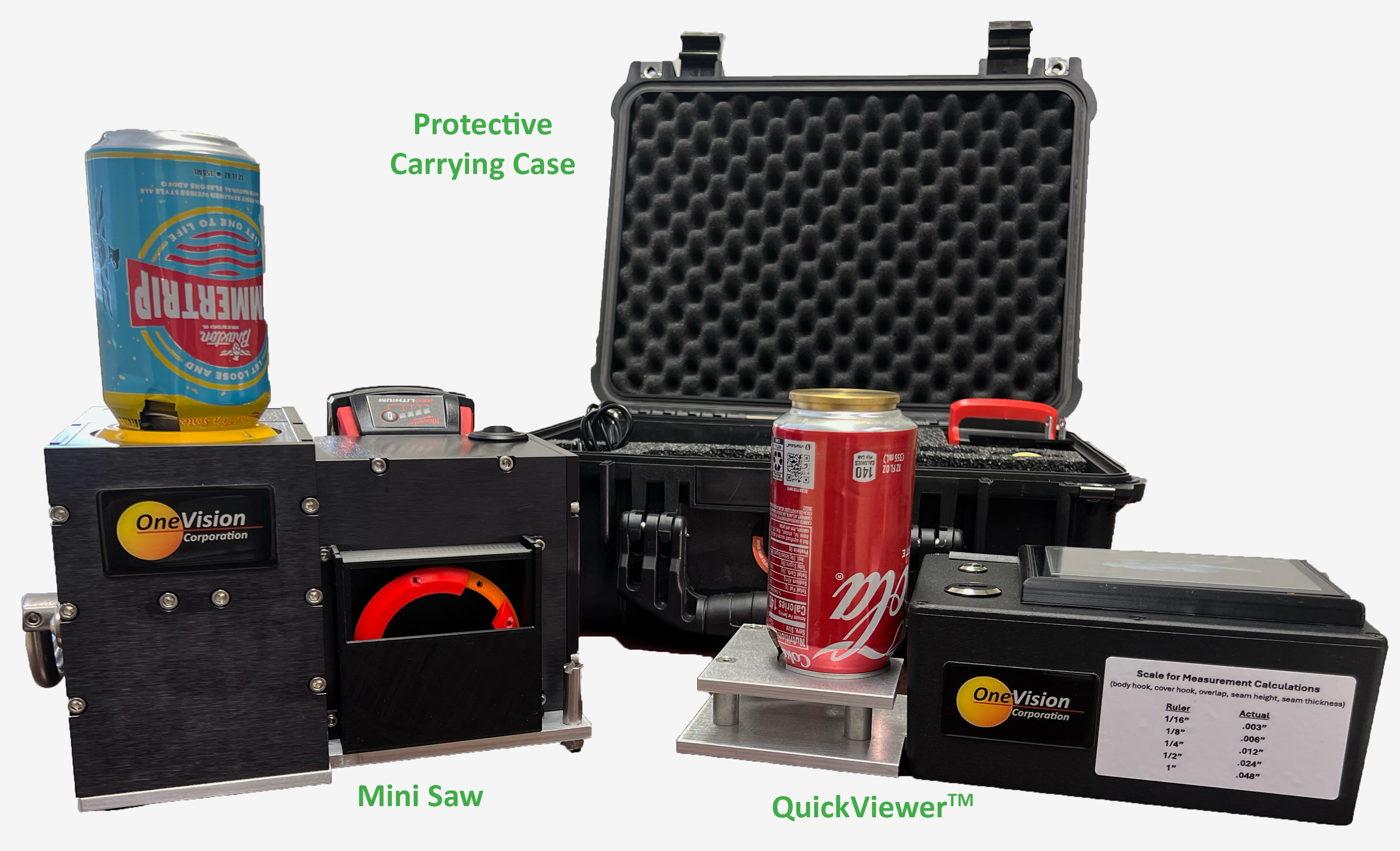

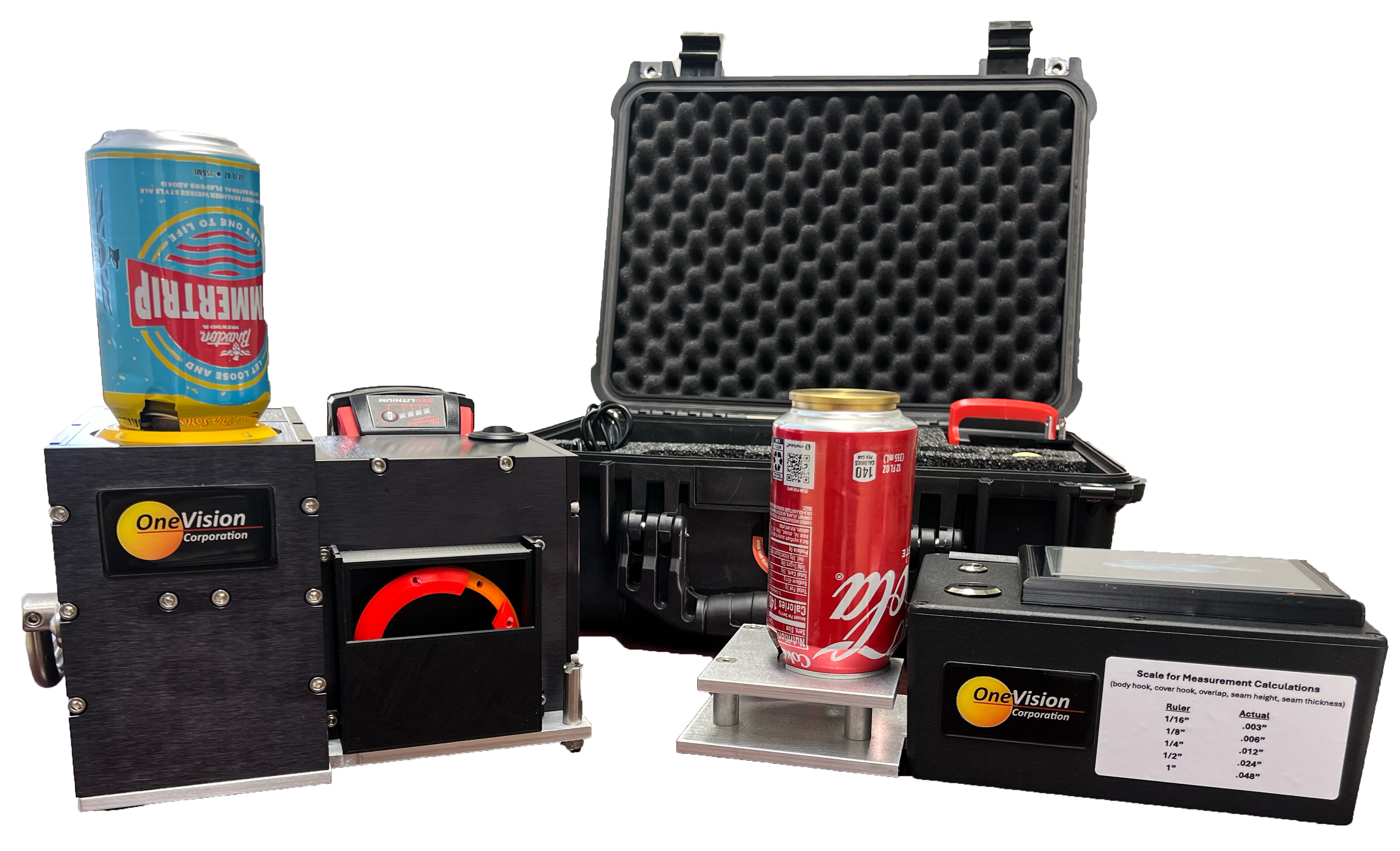

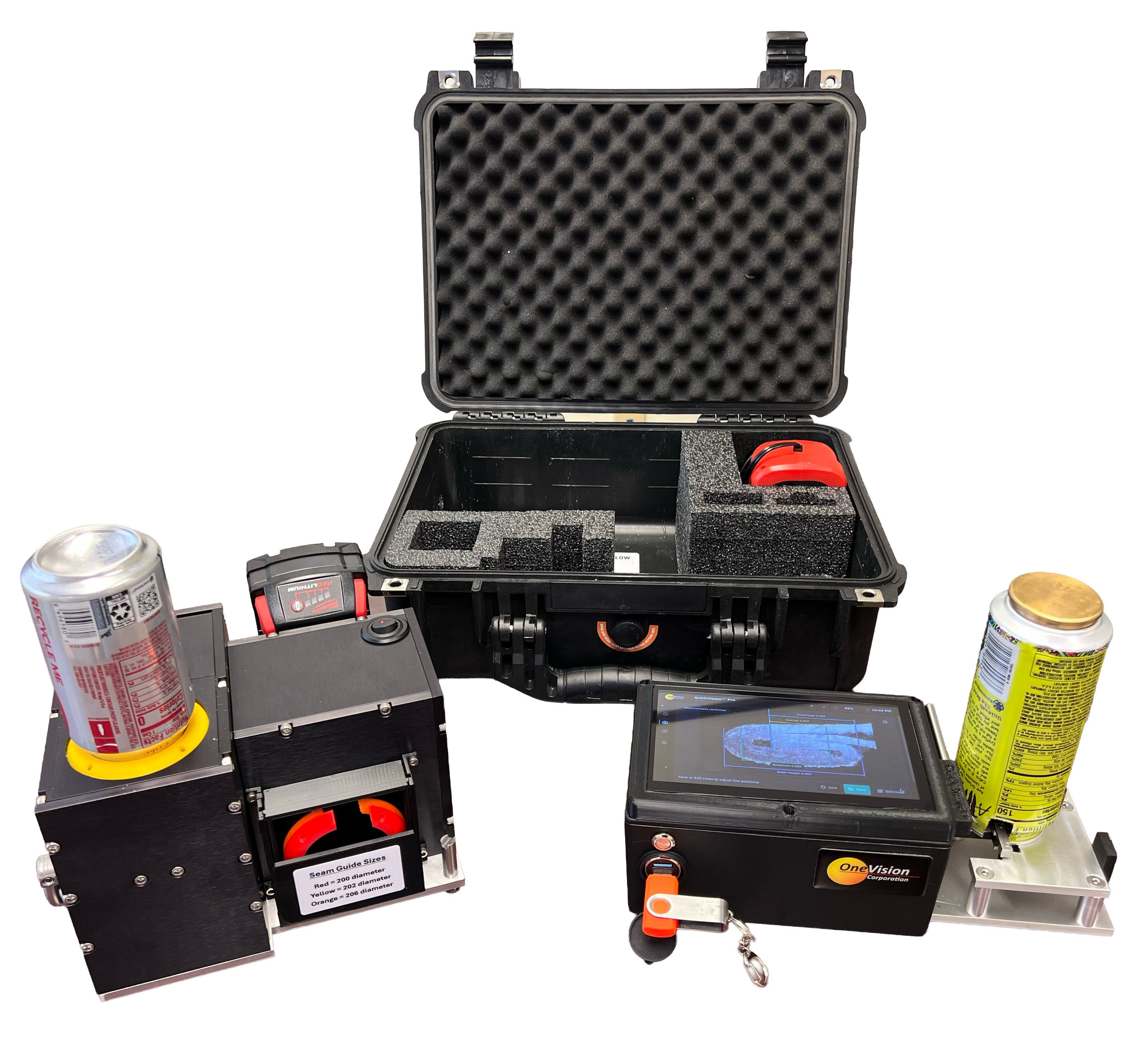

The Portable Beverage System includes:
• Mini Saw
• Three (3) can guides for cutting 200, 202, and 206 cans
• High output battery and charger (U.S. orders only)
• Seam cleaning bars
• QuickViewer™
• Loaded with OneVision’s Base or Pro software
• OneVision-branded 2GB USB drive for exporting images

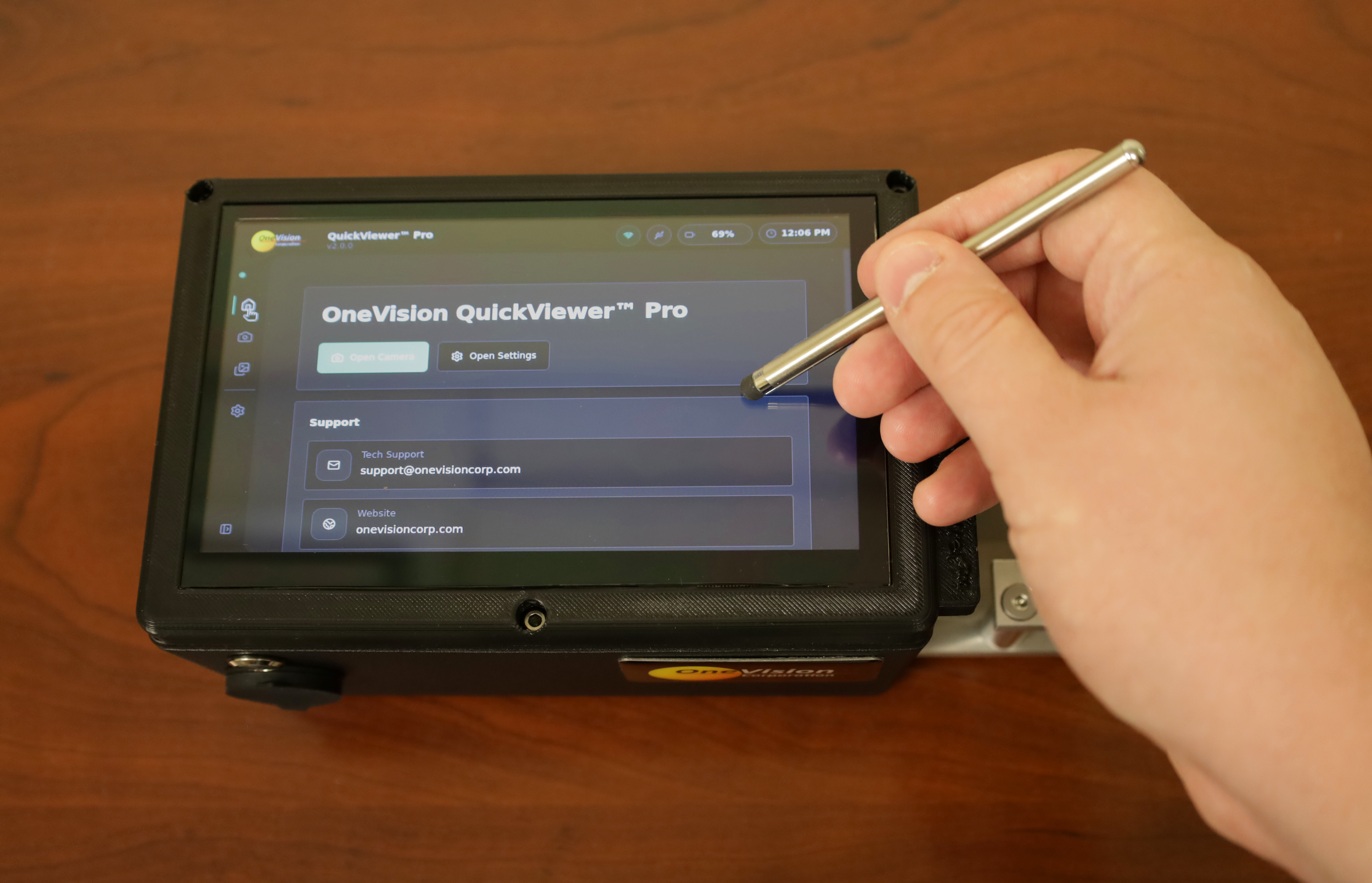

• Stylus
• Can weight for stabilization when imaging
• Machinist ruler (Base model only)
• Protective Carrying Case
• Full system weighs 25 lbs. in protective carrying case
Available In two Models.
Which Model is right for Your Operation?
Both models accurately evaluate internal double seam dimensions, including Body Hook, Cover Hook, Overlap, and Seam Height. With the Base model, users manually place measurement lines and use the on-screen ruler to match their physical measurement, allowing the software to calculate the value. With the Pro model, users simply select Measure, and the system automatically places the measurement lines and calculates the values, with the option to fine-tune line placement if needed.

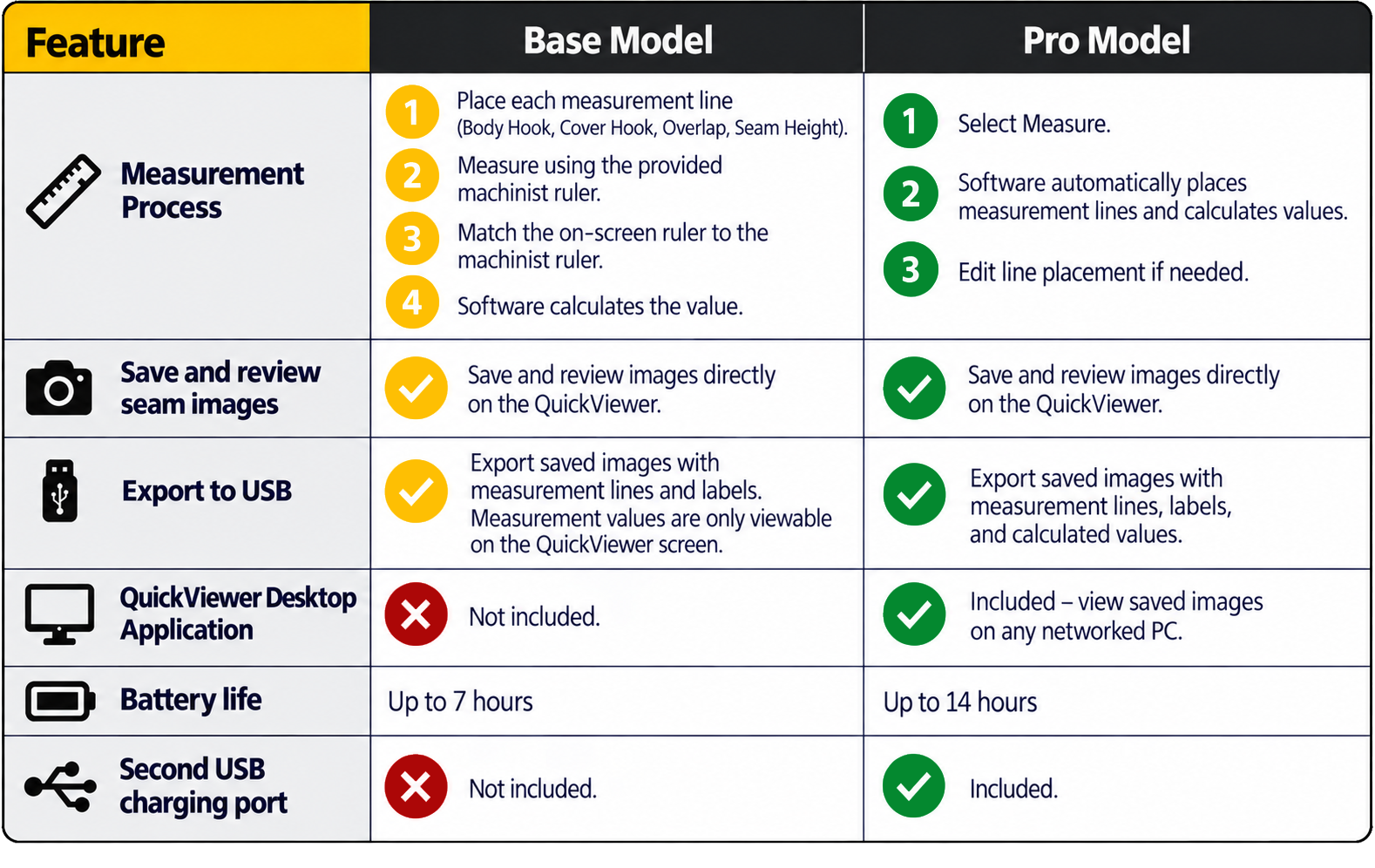

Base and Pro Model Options
The Measurement Process
Base Model Measurement Process
Pro Model Measurement Process
Take a Closer Look

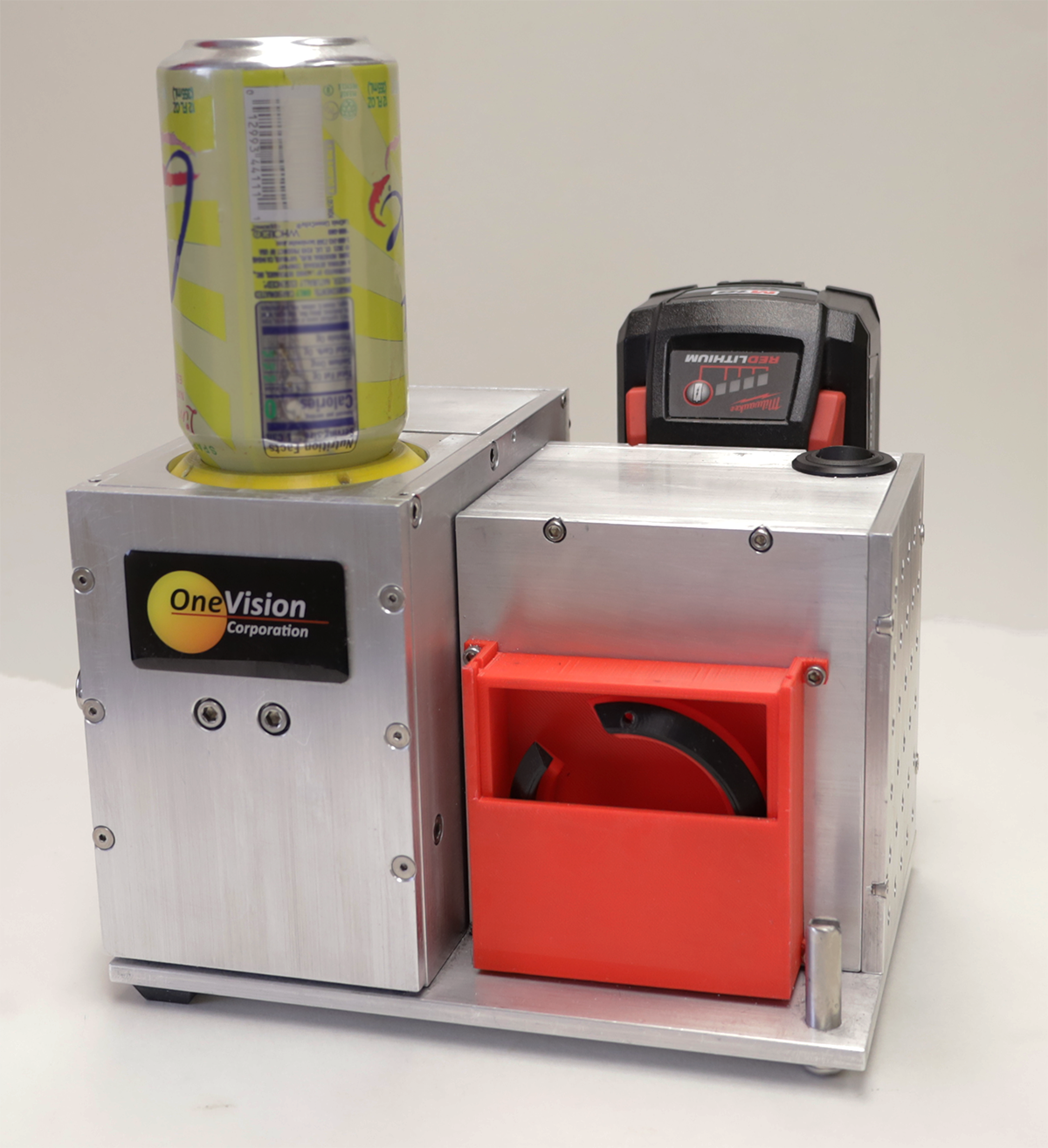

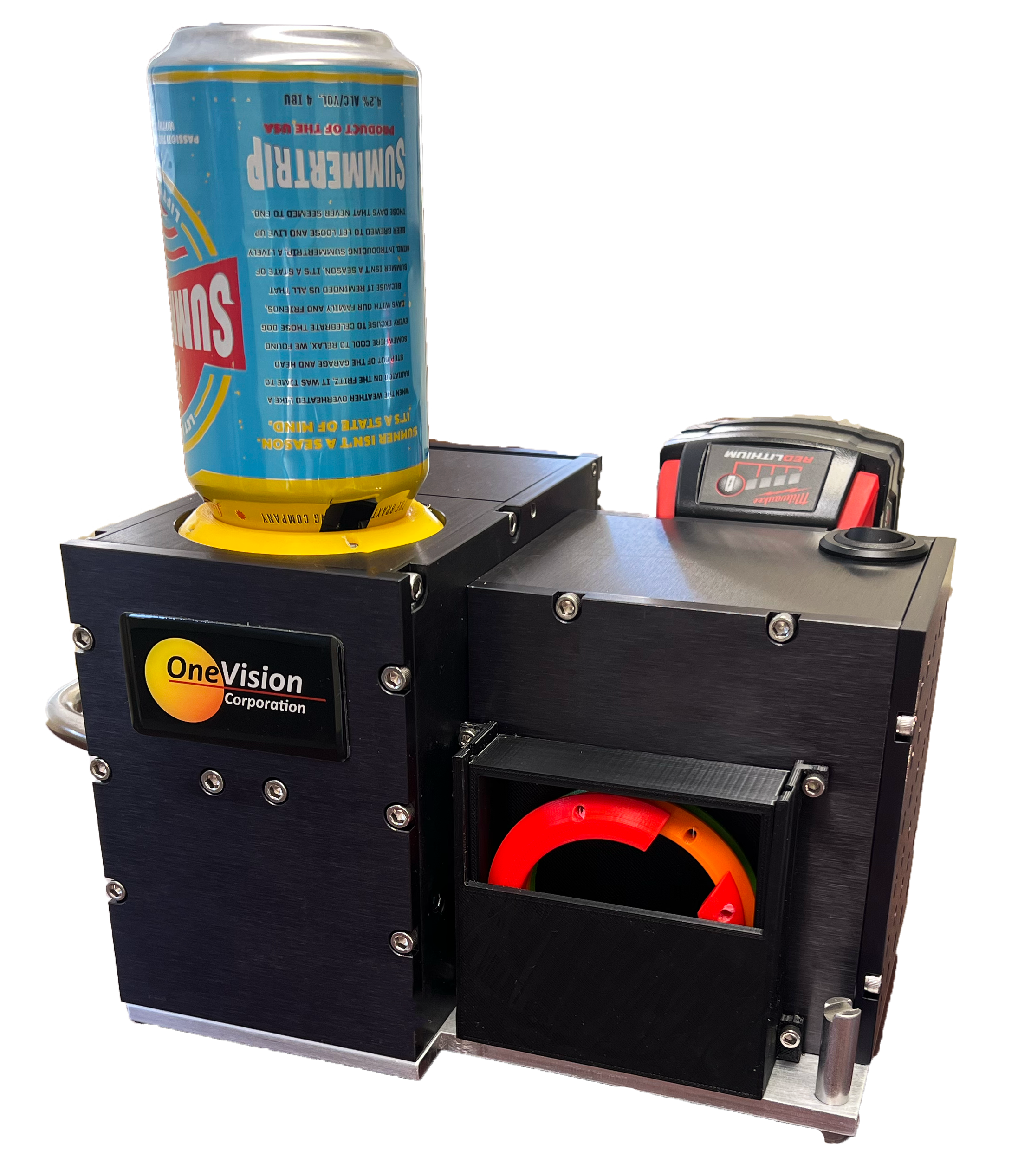

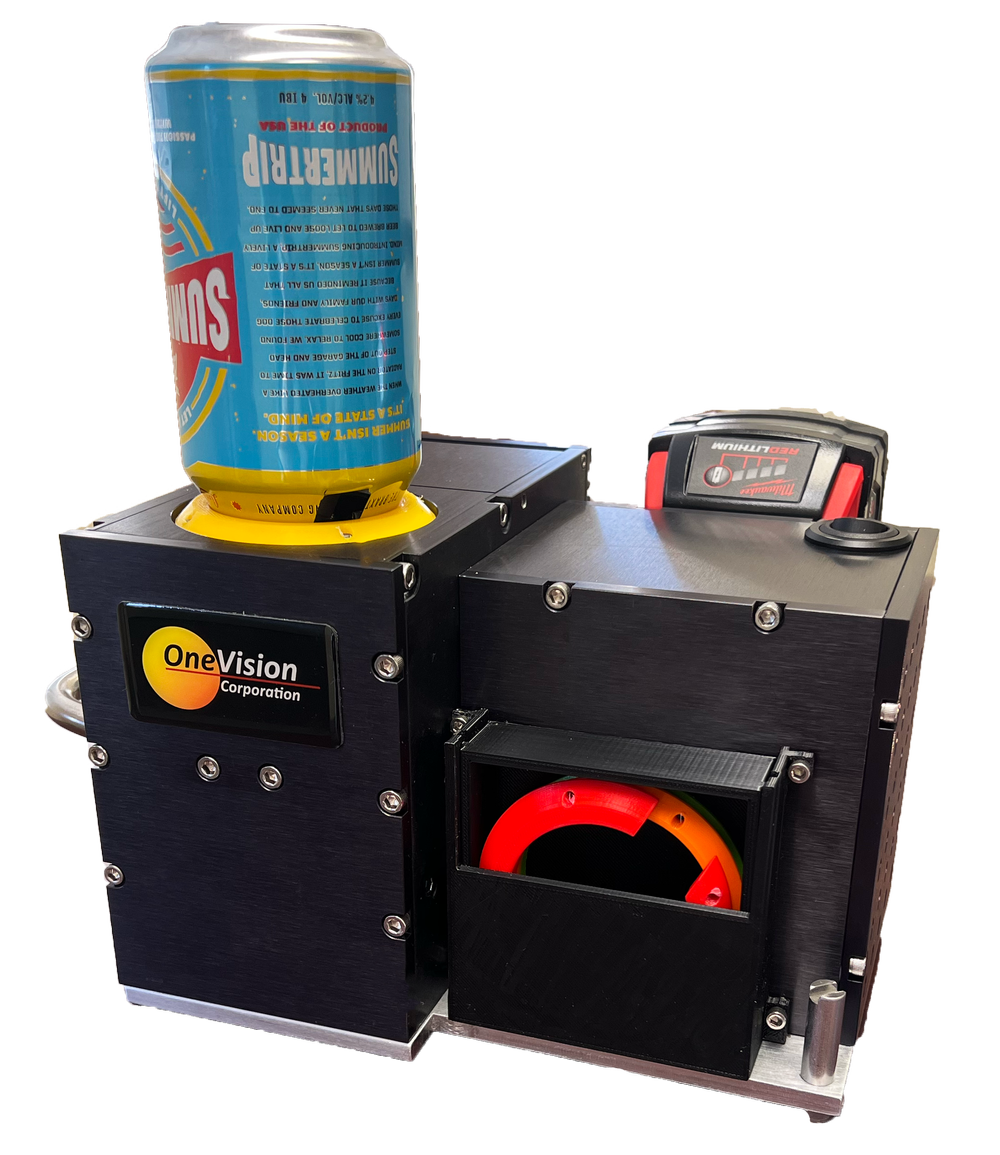

Mini Saw

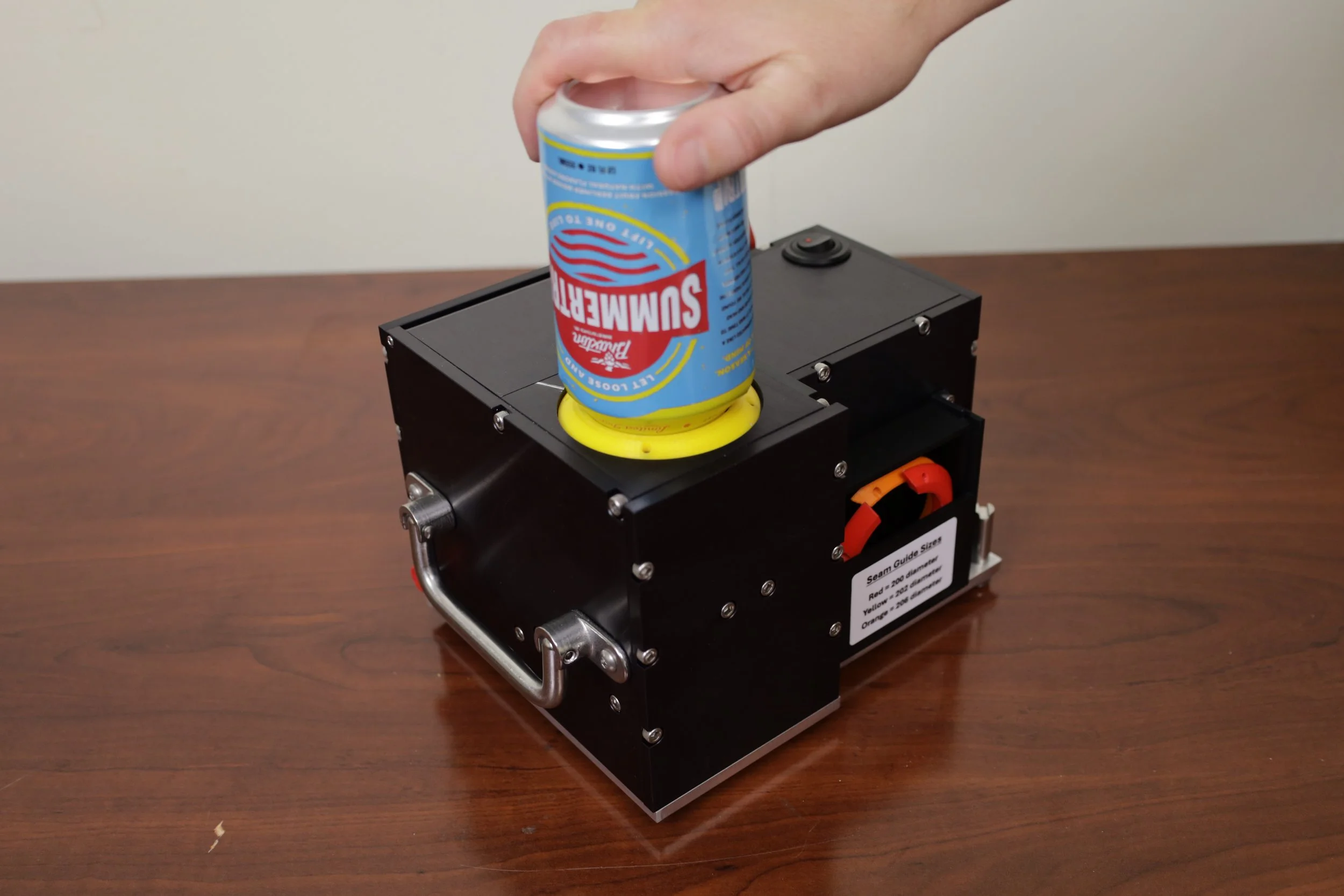

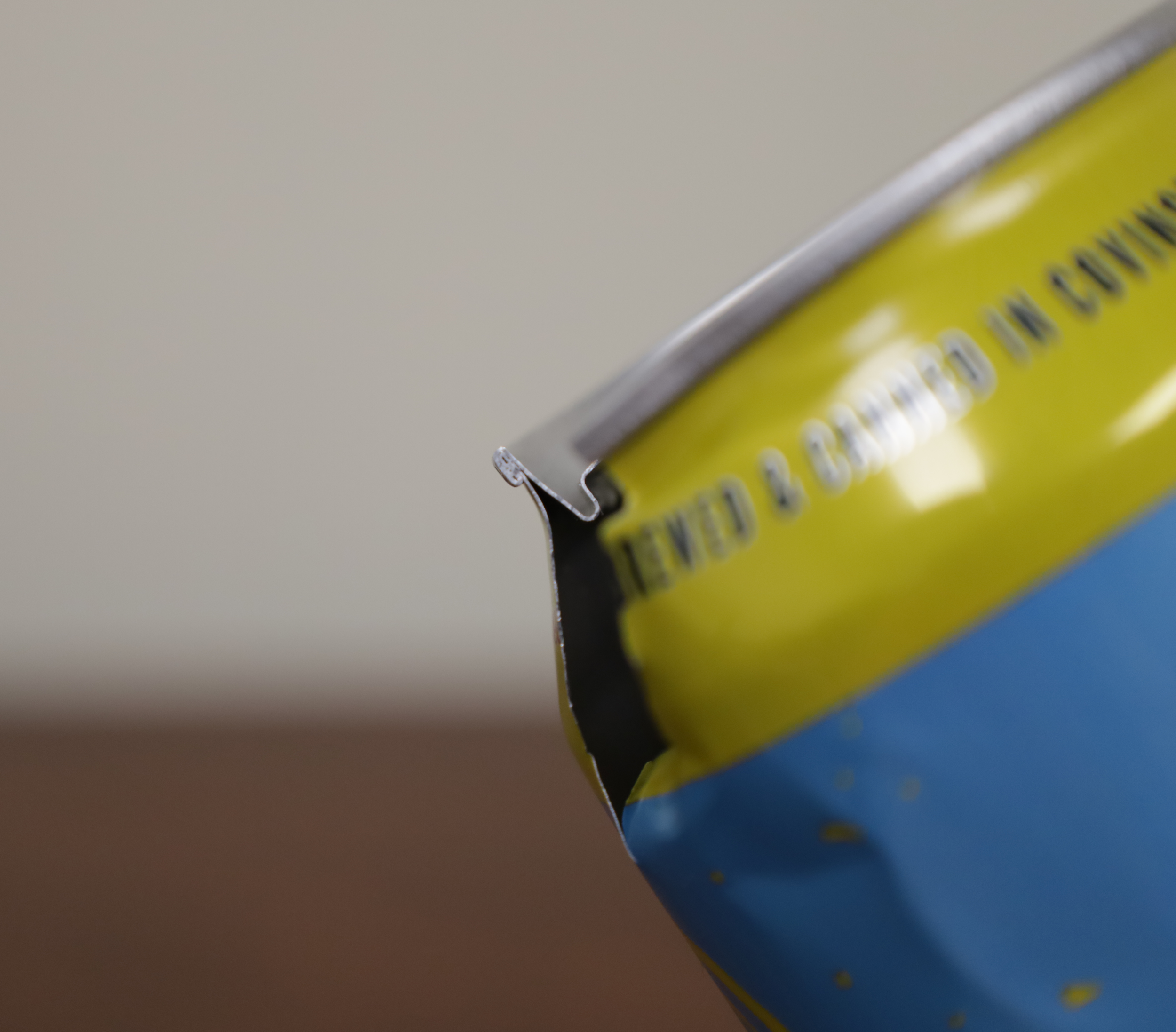

The OneVision Mini Saw is a simple, portable solution for preparing beverage cans for optical double seam inspection. Designed for ease of use, the saw produces a clean, consistent slot through the double seam for viewing and measurement with the QuickViewer™. The saw uses a single, long-lasting blade with an easy-to-change design.
Safe, enclosed blade and cutting cycle.
Includes seam guides for 200, 202, and 206 cans. Additional seam guide sizes up to 206 available upon request.
Cutting time under 5 seconds per slot

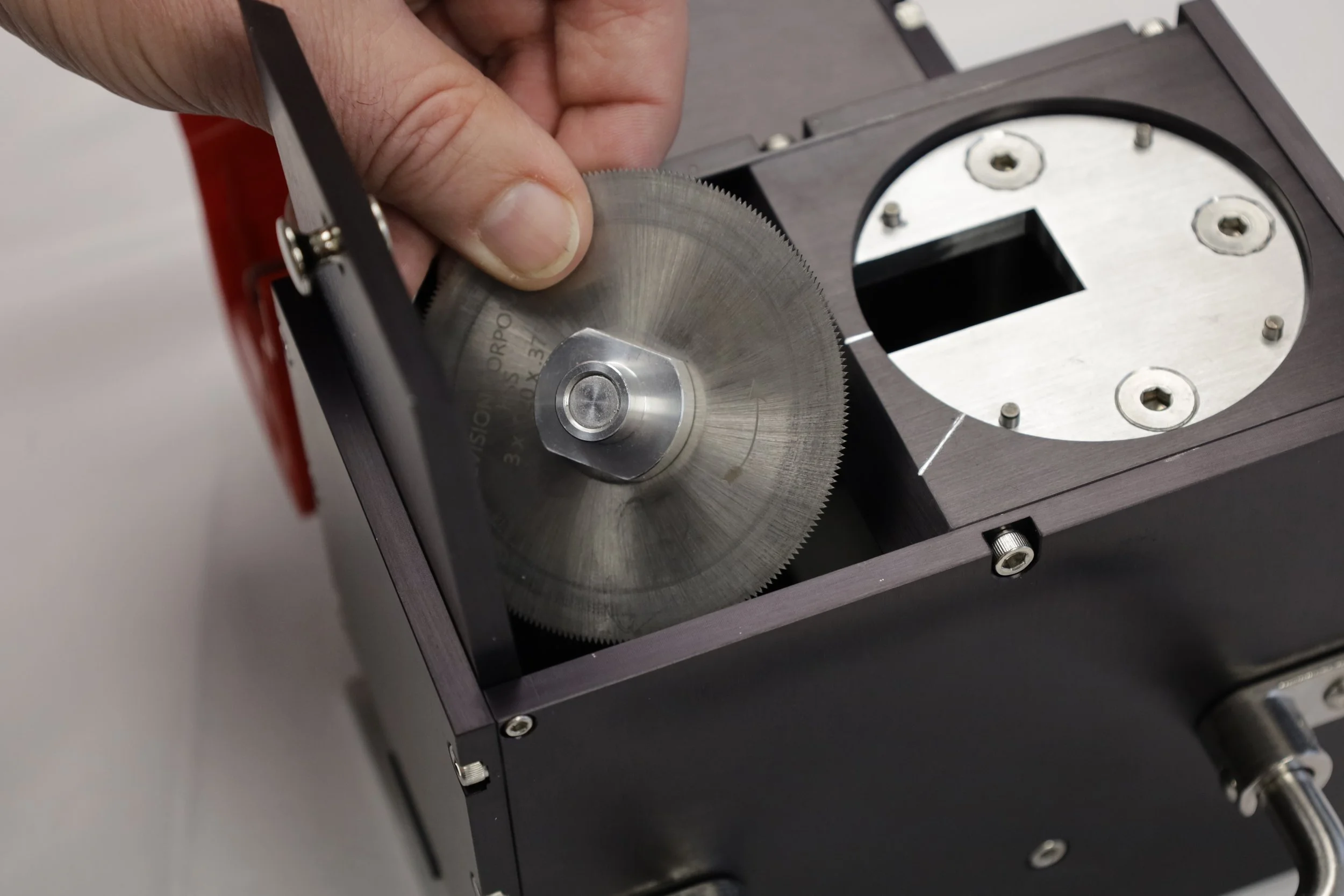

Blade changed in under 5 minutes
Blade life: 2-3,000 cuts
Weighs approximately 14 lbs. with battery
Dimensions: 9″ x 7″ 6 1/4″
Includes high output battery and charger (U.S. orders only)
35W DC gear motor
Built-in carrying handle
Anodized for added durability and resistance to corrosion.
Includes seam cleaning bars.

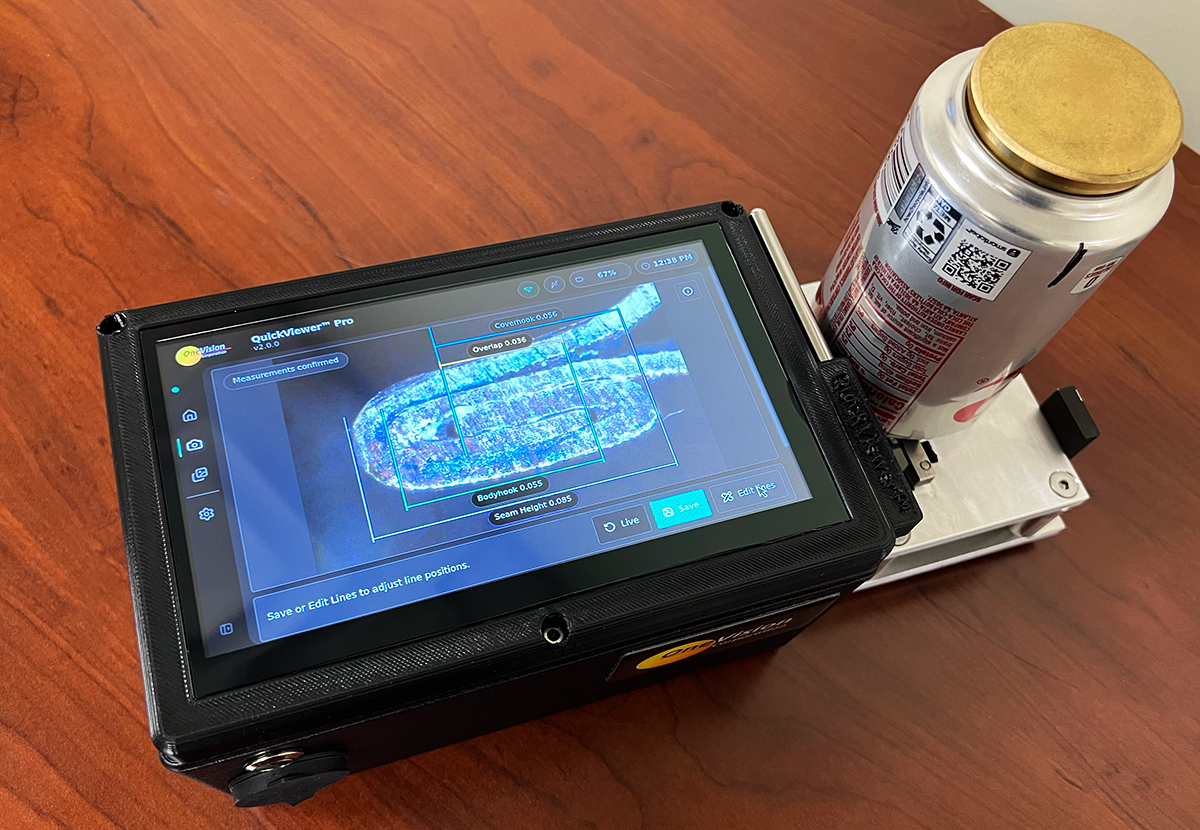

QuickViewer™

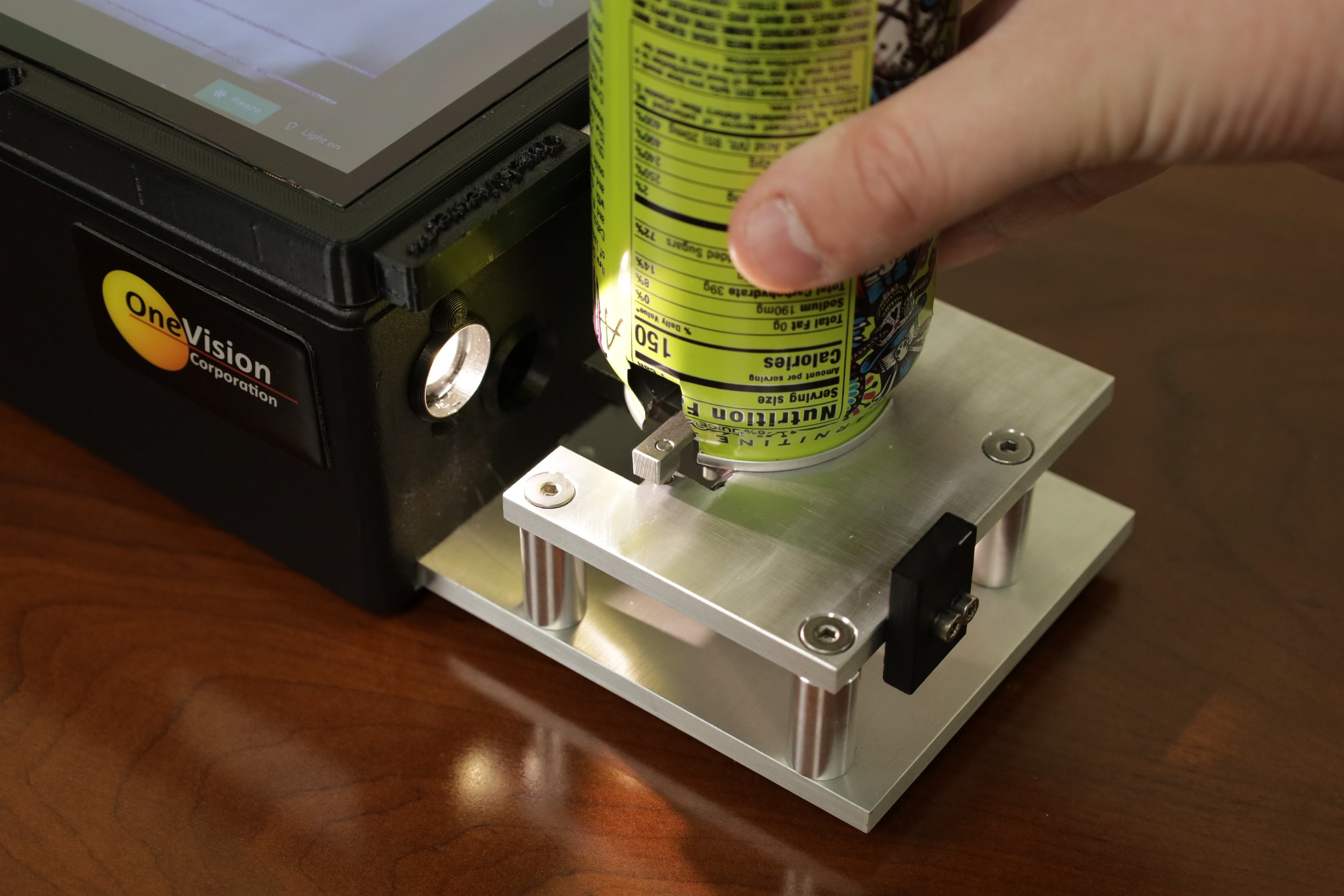

The QuickViewer™ combines a high-precision digital microscope and viewing screen in one compact, portable unit. Seam images can be viewed and evaluated directly on the built-in 7-inch touchscreen, eliminating the need for a separate laptop or tablet.
High-precision digital microscope
7″ color touchscreen with light and dark display modes
Compact design (11 1/4″ x 4 3/4″ x 4″)
Lightweight (4 1/2 lbs.)
Battery life of up to 7 hours
Multi-language interface: English, Spanish, and Japanese
Save and review seam images directly on the QuickViewer
Export saved seam images to USB

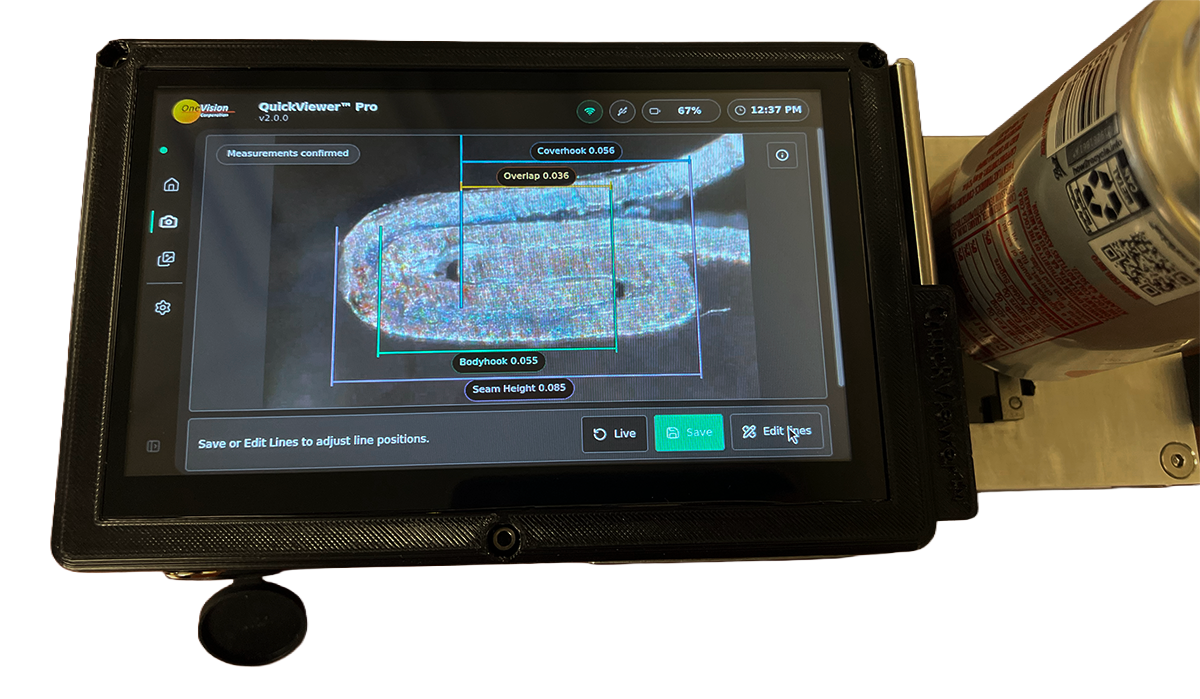

Color-coded measurement lines
Guided measurement line placement
Measurement values displayed directly on the QuickViewer
Includes:
• 2 GB USB drive for exporting images
• Machinist ruler
• Can weight to stabilize can during imaging
Upgrading to the Pro Model Adds:
Automatic seam measurement and calculation
QuickViewer Desktop application for viewing saved images on any networked PC
Extended battery life of up to 14 hours

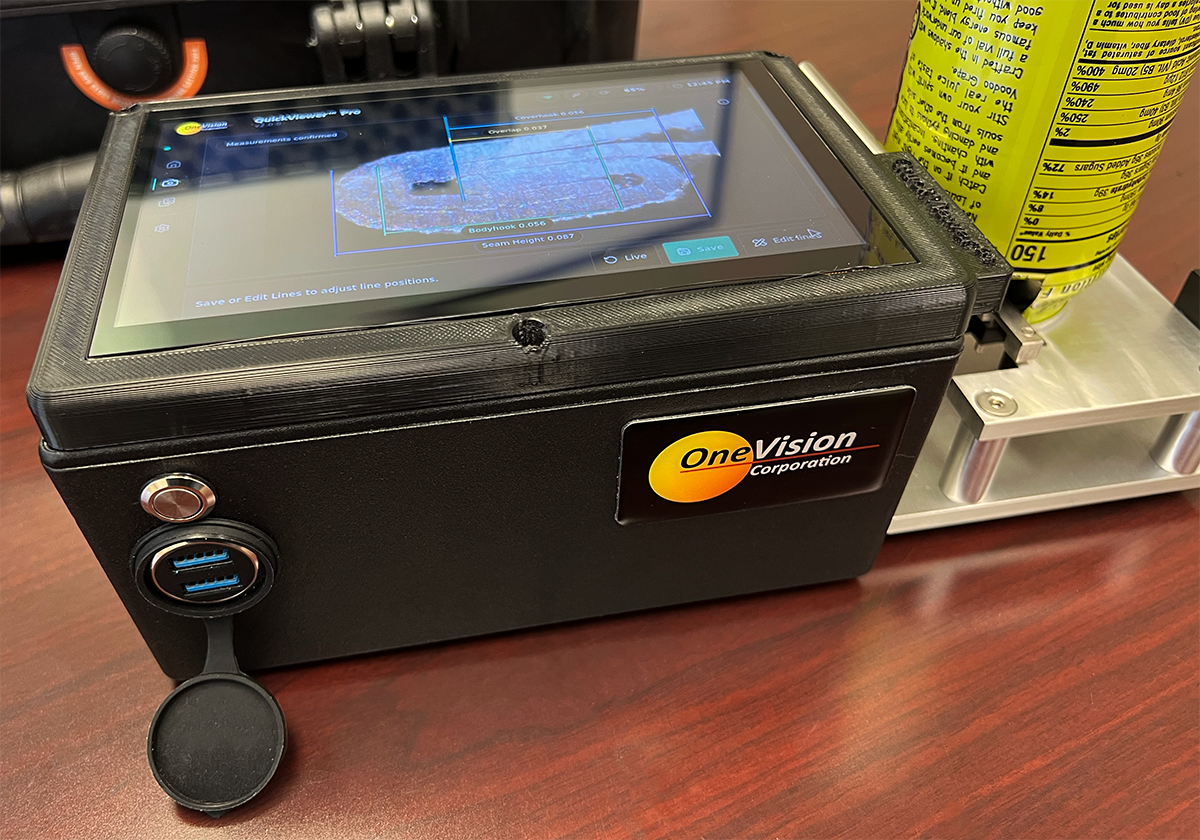

Second USB port for charging devices
Exported seam images include measurement labels, lines, and calculated values
